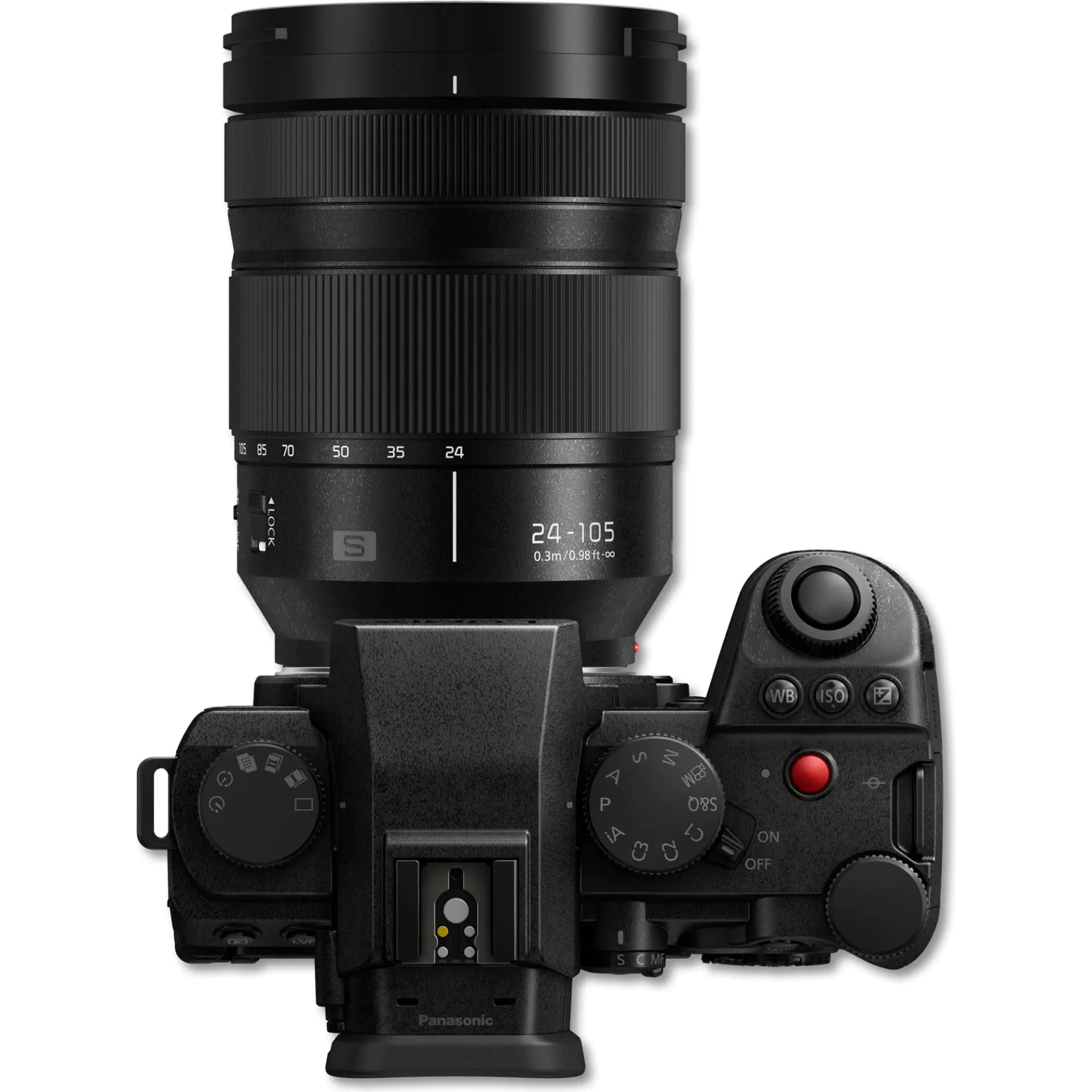

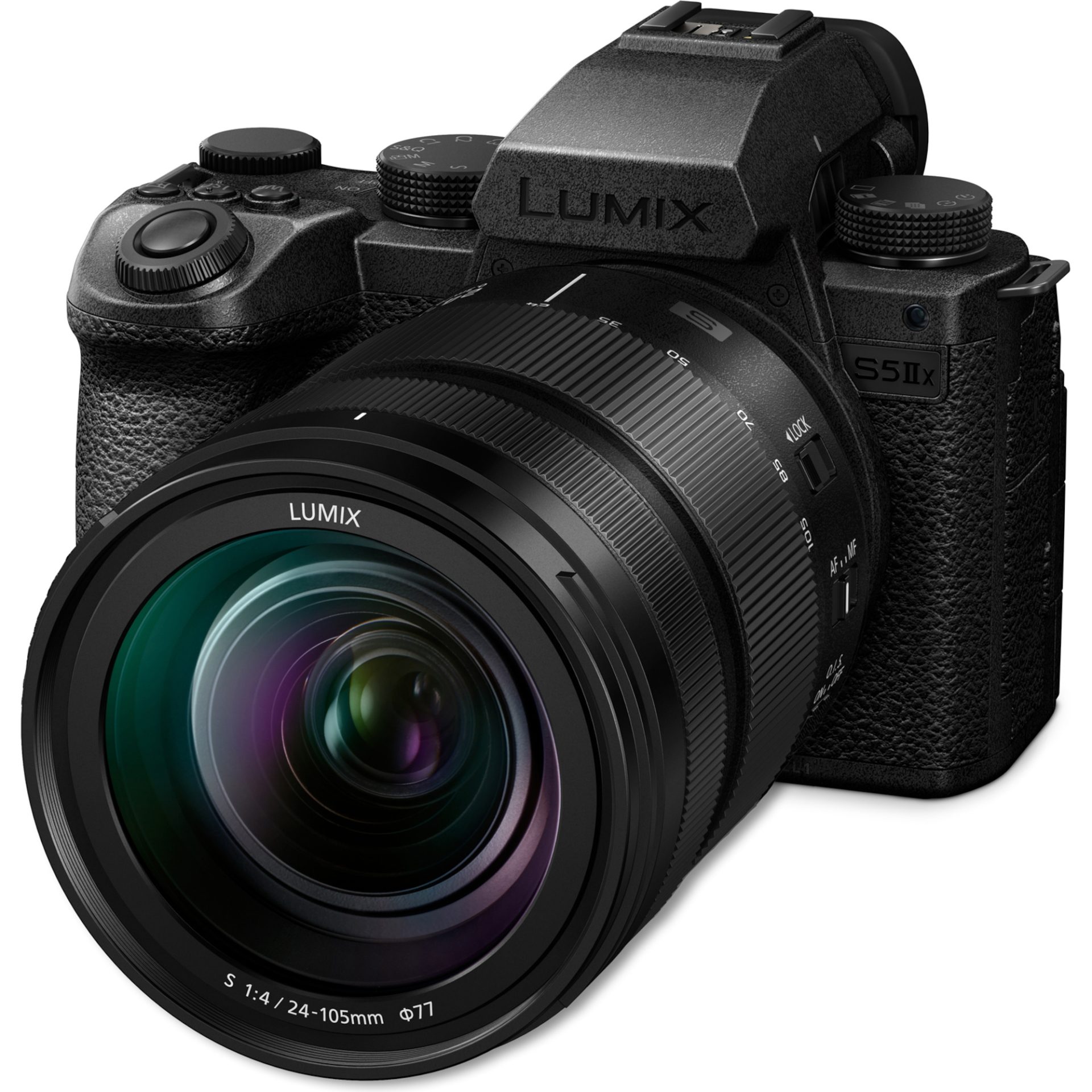

Panasonic DC-S5M2XM Lumix Full-Frame cameră mirrorless DC-S5M2X + obiectiv S-R24105 24-105mm, F4, MACRO O.I.S. (CMOS 24.2MP, Active I.S.), negru

1 din 8

Caracteristici cheie

  • Noul senzor de 24,2 MP cu tehnologie Dual Native ISO și un procesor de generație nouă
  • Phase Detection AF și tehnologia Active I.S.
  • Înregistrare nelimitată în format C4K/4K 60p/50p 4:2:2 pe 10 biți
  • Transmitere de date video RAW, video ProRes, video All-Intra și înregistrare externă pe USB-SSD

Variații

Panasonic DC-S5M2XM Lumix Full-Frame cameră mirrorless DC-S5M2X + obiectiv S-R24105 24-105mm, F4, MACRO O.I.S. (CMOS 24.2MP, Active I.S.), negru

16824.9 lei
16824.9 lei
  • Tbi Price de la 481.21 LEI / lună (calculator)

  • Livrare gratuită

indisponibil

Acest produs este indisponibil. Vă puteți înscrie pe lista de așteptare pentru a fi notificați când va reveni în stoc.

Compară produsul

Distributie oficiala romaneasca

Până la 4 rate cu 0% dobânda (DAE=0%) sau până la 60 de rate cu o dobândă standard.

Livrare gratuită

Parametri

Tipul camerei
Cameră mirrorless
Tipul kitului
Body + Obiectiv
Tip senzor
CMOS
Dimensiunea senzorului
FF
Rezoluția efectivă a senzorului [Mpx]
24,2
Format de înregistrare foto
HLG Photo | JPEG | RAW
Extinde tot
Rezoluția înregistrării video
4K | C4K | Full HD
Format de înregistrare video
Apple ProRes | MOV | MP4
Conectori și porturi
HDMI | intrare telecomandă 2.5mm | mini Jack | USB

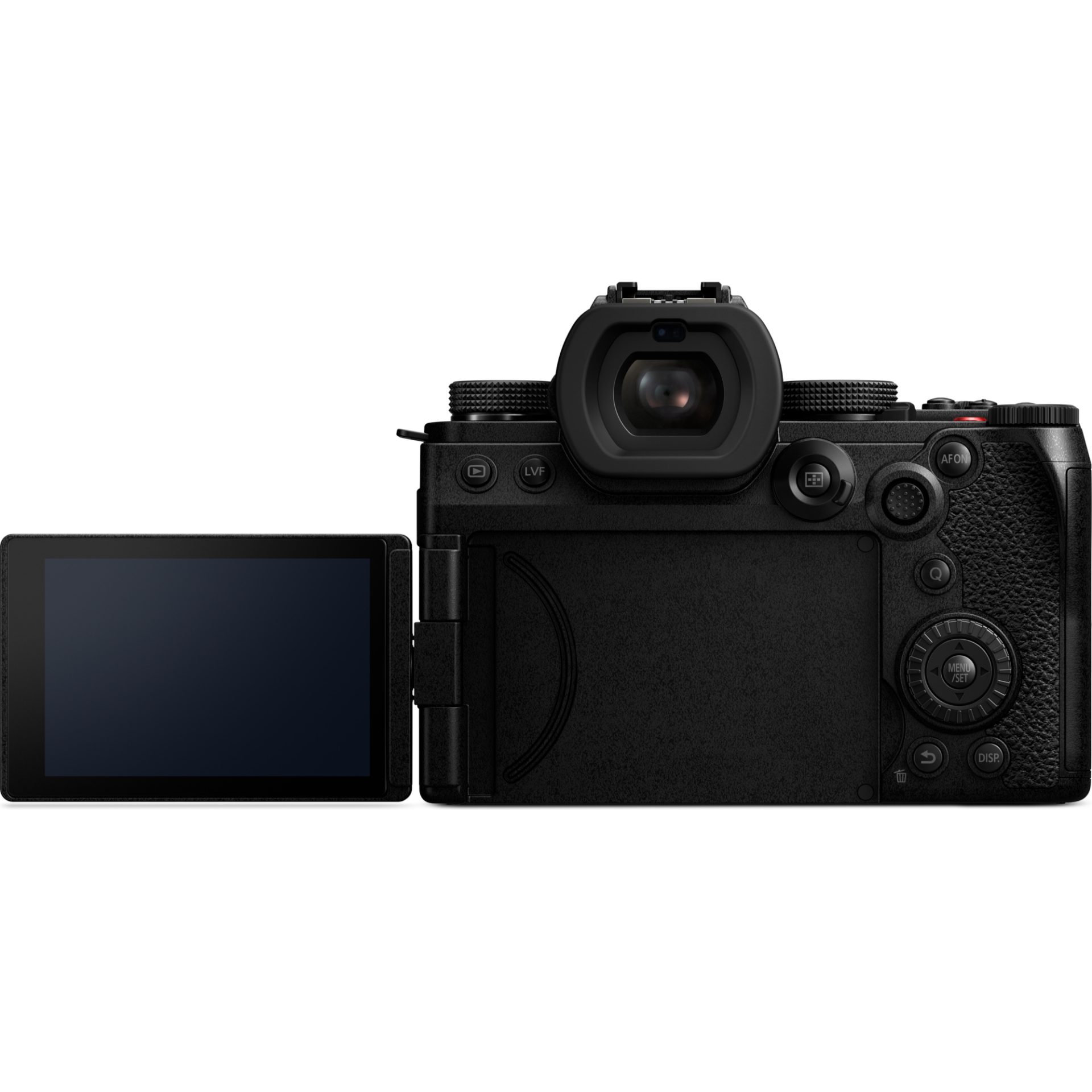

Ecran
LCD | pivotant | tactil
Dimensiune ecran ["]
3

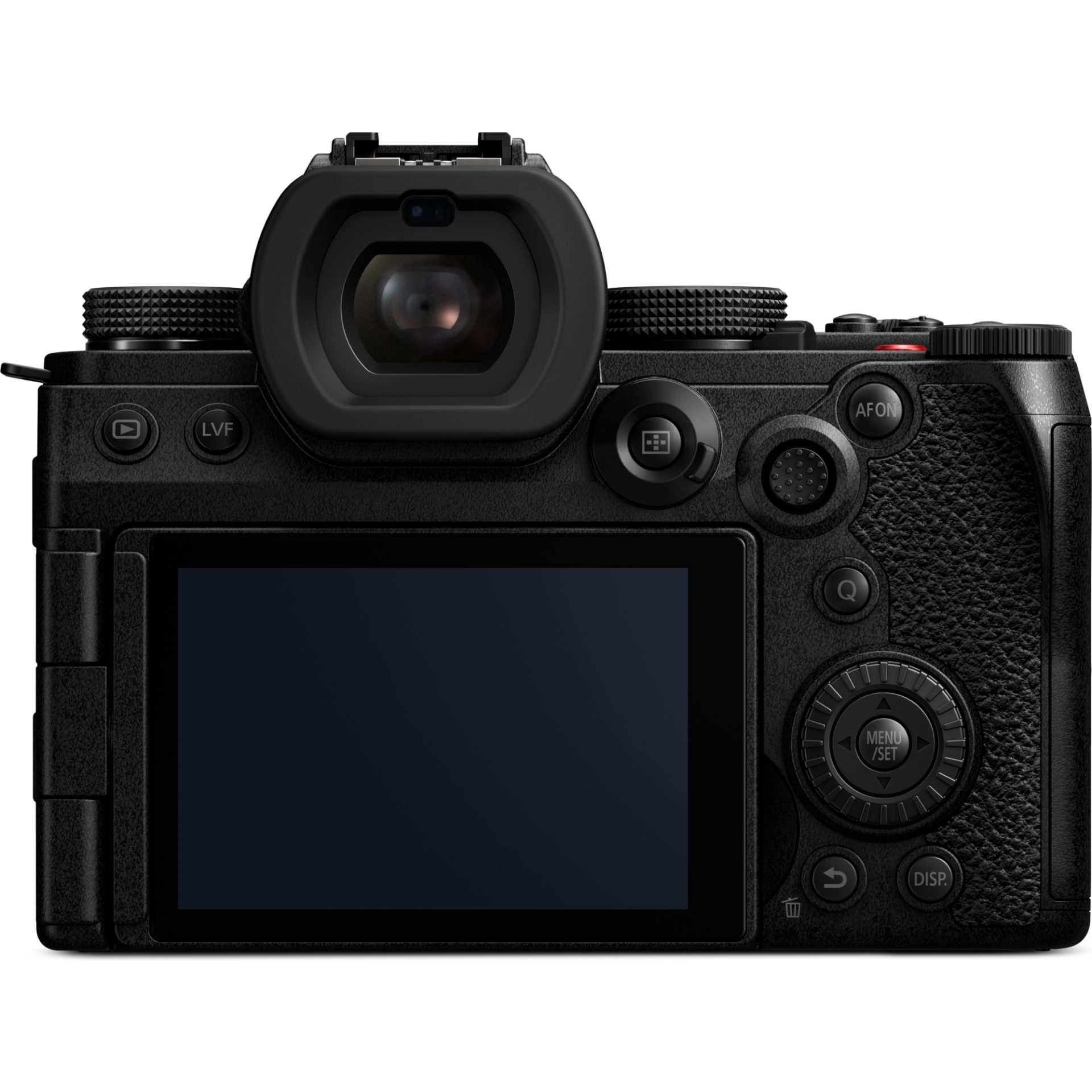

Vizor
OLED LVF
Conectivitate wireless
Bluetooth | Wi-Fi
Stabilizare
B.I.S. | Dual I.S.
Carduri acceptate
SD | SDHC | SDXC
Montura obiectiv
Montură L
Serie
Lumix S
Culoare
negru
Restrânge

Descriere

DC-S5M2XM

Cunoaște-ți universul creativ.

Funcțiile avansate precum PDAF și I.S. (stabilizarea imaginii) fac din utilizarea LUMIX S5IIX o experiență cu adevărat satisfăcătoare. Captați fotografii și clipuri video de înaltă calitate cu o durată de înregistrare nelimitată și bucurați-vă de o mobilitate sporită cu această cameră compactă mirrorless full-frame.

Caracteristici

Filosofia designului

Potrivit filozofiei de design „”Shaping Emotions””, LUMIX S5IIX a fost construit cu un design excepțional negru mat, fără precedent. LUMIX DESIGN aspiră să creeze echipamente care răspund pasiunii creatorului. Forma și funcția dau formă emoțiilor inimii; fiecare piesă se simte bine și exact acolo unde trebuie să fie. Mâinile sigure de ceea ce trebuie să facă permit ochilor să rămână fixați pe subiect. În formarea instrumentului ideal, scopul nostru este de a crea o cameră pe care să o poți folosi instinctiv, cu un control precis, pentru o plăcere maximă de fotografiere.

Filosofia LUMIX Design: a da forma emoțiilor

Noul design complet negru al modelului LUMIX S5IIX este realizat pentru a încuraja creatorul să se implice în captarea subiectului, uitând de instrumentele utilizate. Este conceput pentru a se armoniza cu mediul de fotografiere și pentru a preveni reflexiile pe iris sau pe suportul de înregistrare care sprijină creativitatea artistică.

Firmware 2.0 îmbunătățește stilurile dinamice de fotografiere

Gata pentru cele mai ambițioase ședințe foto

Phase Hybrid AF vă permite să fotografiați în mod continuu cu viteză și precizie, în timp ce AF-ul extrem de avansat al modelului LUMIX S5IIX împinge limitele fotografiei sportive, a vieții sălbatice și a fotografiilor cu mașini/motociclete.* În plus, funcția „pre-burst shooting” vă permite să vă întoarceți în timp.* Acum sunteți gata să surprindeți momentul perfect.

Ideal pentru filmarea în mișcare

LUMIX S5IIX facilitează, de asemenea, filmarea video în mișcare. Active I.S. determină starea de vibrație a camerei și optimizează ratele de corecție pentru a compensa chiar și mișcările semnificative, în timp ce E.I.S.* avansat suprimă distorsiunea periferică care apare în timpul filmărilor video. Așadar, acum puteți imortaliza imagini frumoase, chiar dacă trebuie să vă mișcați rapid în timp ce camera filmează.

Firmware 2.0 introduce primele caracteristici ale LUMIX

Înregistrare video proxy

Această nouă funcție înregistrează un fișier proxy cu rată de biți redusă atunci când înregistrează clipuri video. Înregistrarea simultană a unui fișier proxy care este legat de înregistrarea video originală permite o livrare mai rapidă de la producție la post-producție.

Integrare nativă a camerei în cloud cu Adobe’s Frame.io

Cu Frame.io Camera to Cloud, imaginile și clipurile video ale creatorilor sunt încărcate automat, copiate, partajate și prelucrate în comun prin intermediul cloud-ului.

Un grad superior de exprimare vizuală

Ieșire de date video RAW

LUMIX S5IIX permite ieșirea datelor video RAW prin HDMI pentru a le salva în format ProRes RAW pe monitoarele-recorder ATOMOS NINJA V+, NINJA V și Shogun CONNECT HDR.* Formatul RAW-ul Blackmagic poate fi, de asemenea, înregistrat pe Video Assist 12G HDR.**

Înregistrare externă pe SSD prin USB

În cazul modelului LUMIX S5IIX, înregistrarea și redarea sunt posibile cu ajutorul unui SSD extern prin USB. În plus, capacitatea de a înregistra ProRes 422 HQ (maxim 1,9 Gbps) și 4:2:2 10 biți All-Intra direct pe SSD-uri, care combină portabilitatea și capacitatea mare, a îmbunătățit eficiența în ceea ce privește salvarea datelor și postprocesarea.

Intrați în direct oricând și de oriunde

Bucurați-vă de streaming live creativ cu camere mirrorless digitale cu un singur obiectiv, atât în interior, cât și în exterior. Transmisiunea live (protocol RTMPS*) poate fi configurată cu ușurință prin intermediul aplicației LUMIX Lab**.

Gestionarea căldurii pentru timp de înregistrare nelimitat

Timp de înregistrare nelimitat în format 4:2:2 pe 10 biți C4K/4K 60p/50p.* Cu un corp compact asemănător cu cel al modelului S5, noua structură optimizată de disipare a căldurii a modelului LUMIX S5IIX permite înregistrarea prelungită chiar și în situații extrem de solicitante (de exemplu, video de înaltă rezoluție peste 4K, video HFR).

Tehnologia coloristică LUMIX

Angajamentul LUMIX pentru o calitate superioară a imaginii

Noul procesor oferă culori mai realiste, o rezoluție mai bună și un efect tridimensional natural, iar în combinație cu tehnologia Dual Native ISO elimină în mod eficient zgomotul chiar și atunci când fotografiați la sensibilități foarte ridicate, redând minunat chiar și zonele întunecate…

Colorizare ușoară cu REAL TIME LUT

Fotografiile și videoclipurile aplicate LUT pot fi înregistrate intern fără niciun software special. Chiar dacă nu aveți abilități de editare specializate, camera vă ajută să vă extindeți gama de expresie atât cât doriți.

Produse asociate

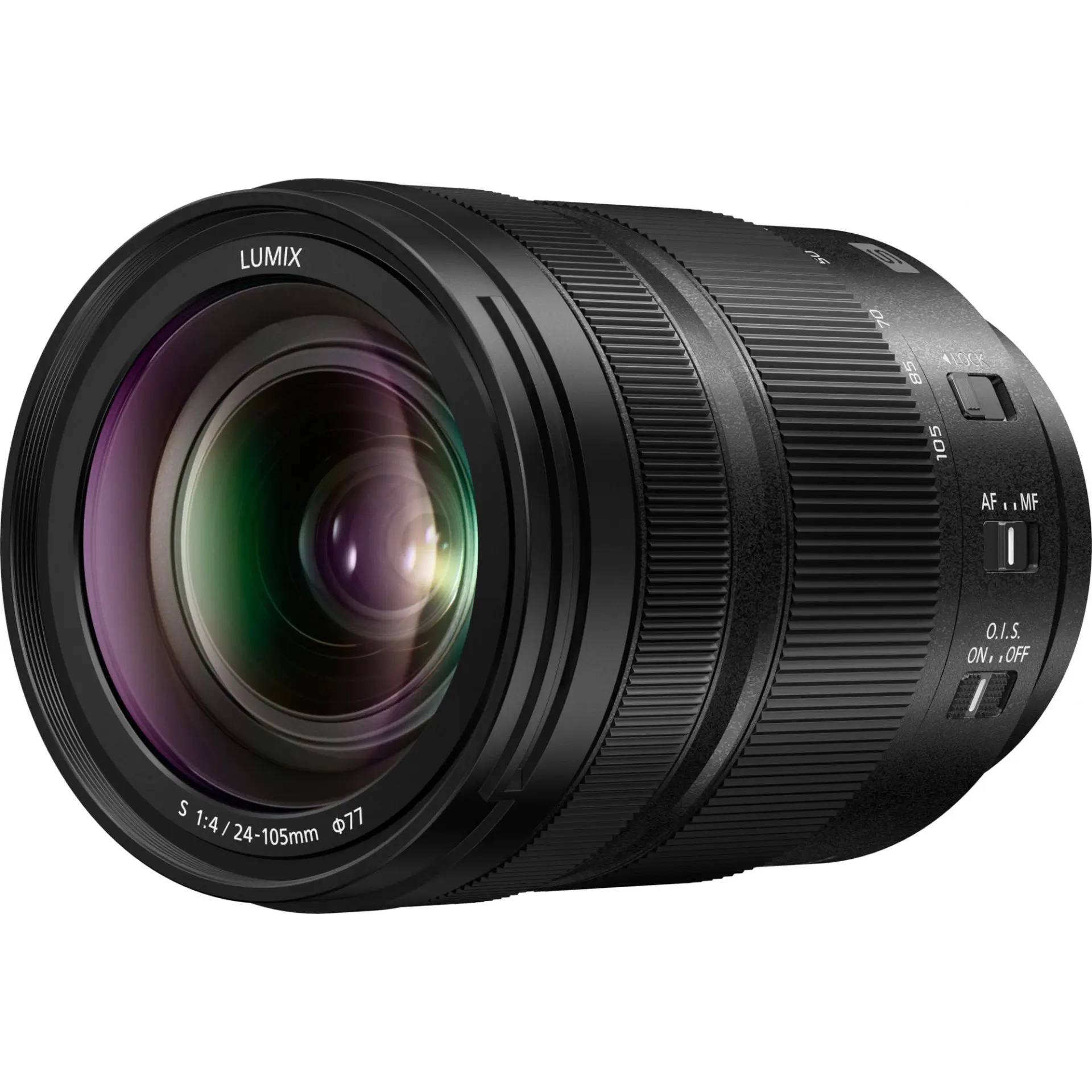

Obiective care permit o expresie fotografică și video de înaltă calitate

Seria LUMIX S oferă performanțe optice, mobilitate și operabilitate superioare, fără compromisuri. Chiar și atunci când schimbați obiectivele, toate imaginile prezintă o redare consecventă, pentru a obține adevărate opere de artă de înaltă calitate.

Gama LUMIX S5

Acum puteți alege dintre LUMIX S5IIX, care oferă o calitate vizuală și mai bună, și LUMIX S5II, gândit pentru o gamă mai largă de creatori de fotografii și clipuri video.

Flow State – Filmat cu LUMIX S5IIX

Un proiect creativ care provoacă trei dintre creatorii de conținut să își depășească limitele creative cu LUMIX S5IIX.

Specificaţii


Sistem L-Mount

24,2 megapixeli

Phase Hybrid AF

Tehnologie activă I.S.

Înregistrări video C4K/4K 4:2:2 10-bit 60p/50p

Fișiere video HFR/VFR pe 10 biți

V-Log

Iesire video RAW

Redare în flux în direct

Afișaj mobil, cu rezoluție de 1 840 000 de puncte

Noul senzor de 24,2 MP cu tehnologie Dual Native ISO și un procesor de generație nouă

Phase Detection AF și tehnologia Active I.S.

Înregistrare nelimitată în format C4K/4K 60p/50p 4:2:2 pe 10 biți

Transmitere de date video RAW, video ProRes, video All-Intra și înregistrare externă pe USB-SSD

Inspiraţi-vă

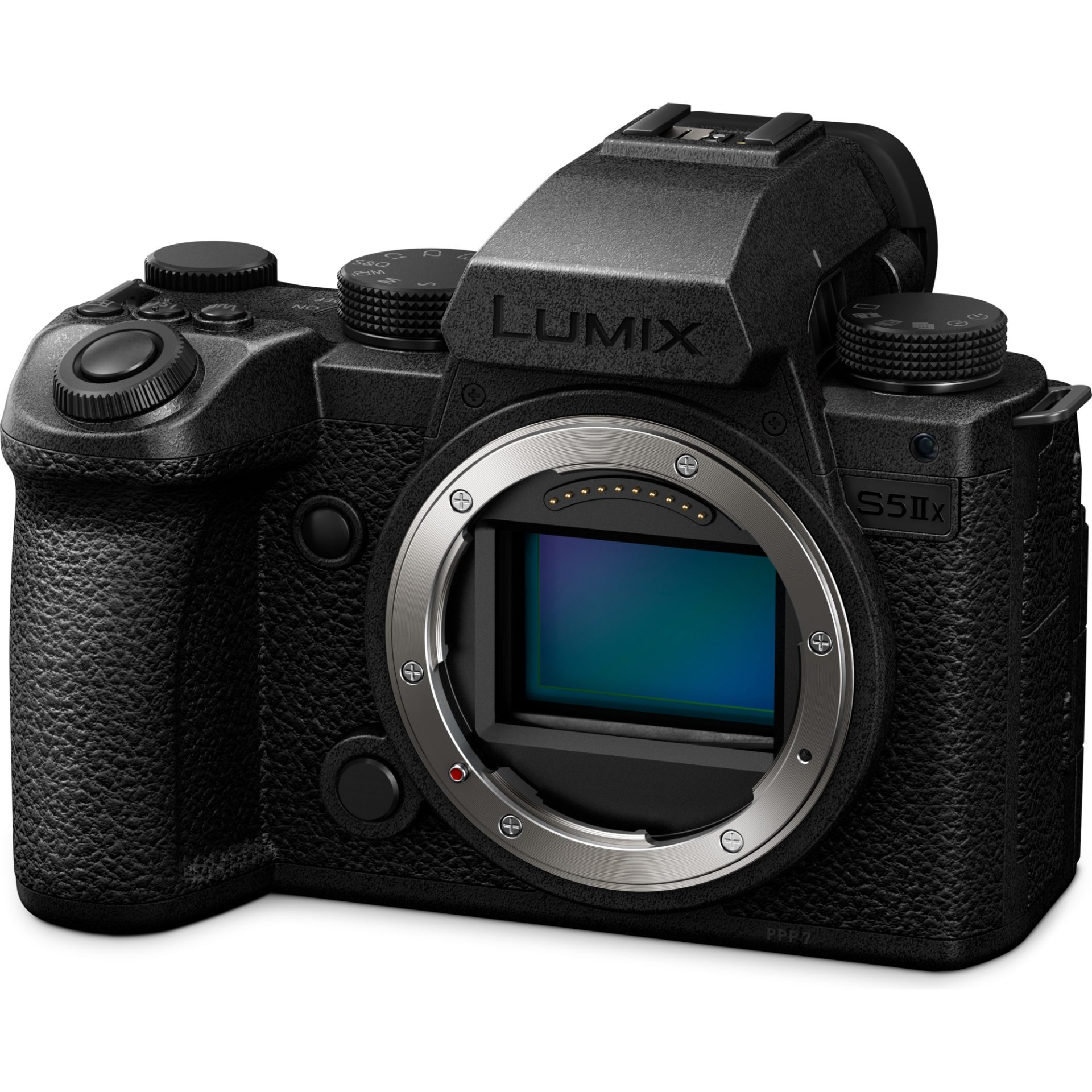

Camera foto LUMIX S5IIX mirrorless full-frame DC-S5M2X

Technical Features

TYPE
Type
Digital Single Lens Mirrorless camera
Lens mount
L-Mount

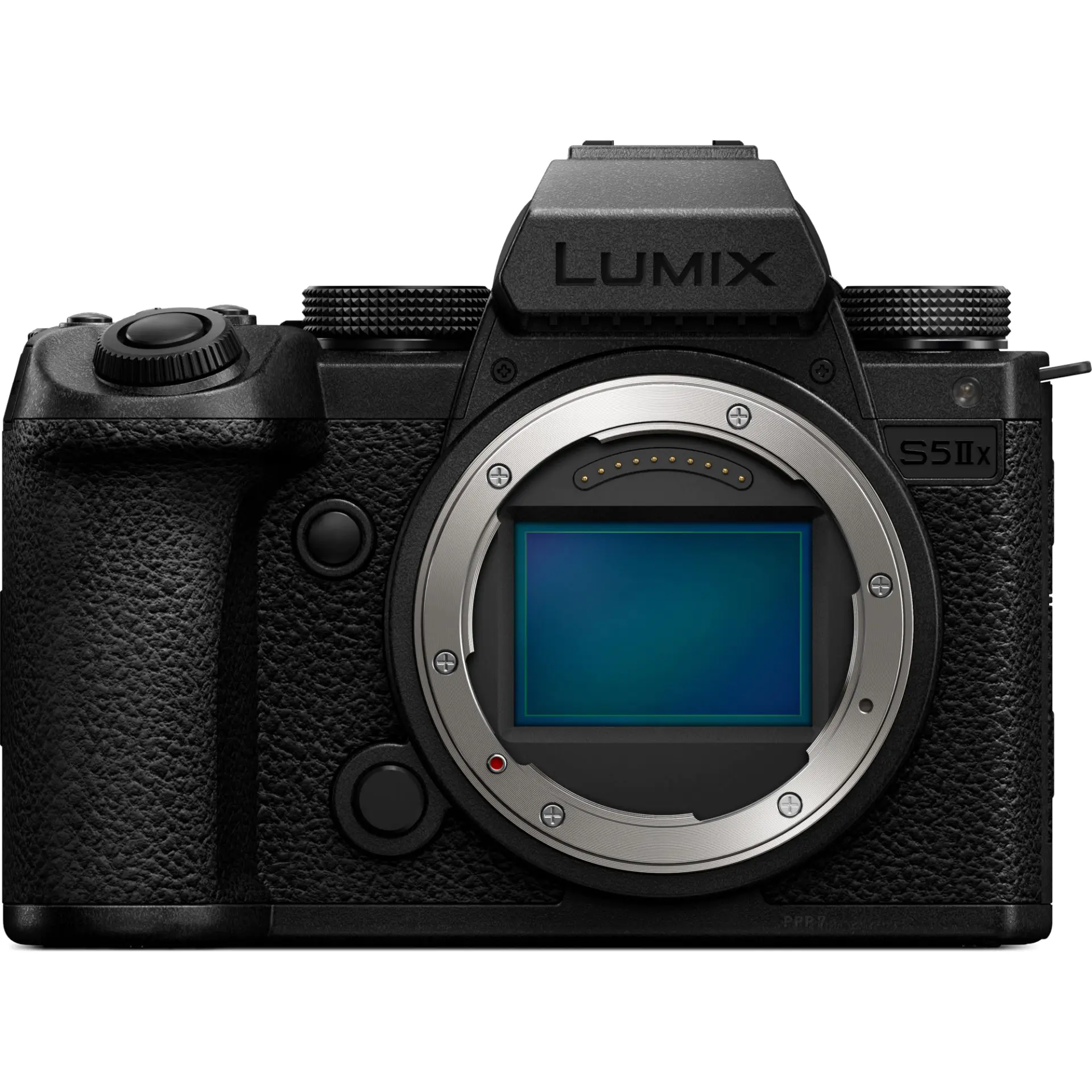

IMAGE SENSOR
Type
35mm full-frame (35.6mm x 23.8mm) CMOS sensor
Camera effective pixels / Total pixels
24.20 megapixels / 25.28 megapixels
AR (Anti Reflection) coating
Yes
Aspect ratio / Color filter
3:2 / Primary color filter
Dust reduction system
Image sensor shift type
LATITUDE
14+ stops (V-Log)
STILL IMAGE
Recording file format
JPEG (DCF, Exif 2.31), RAW
Aspect ratio
4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
File size (pixels) when using full-frame lenses
3:2
6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 12000x8000(XL)* / 8496x5664(LL)* *High Resolution mode.
4:3
5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 10656x8000(XL)* / 7552x5664(LL)* *High Resolution mode.
16:9
6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 12000x6736(XL)* / 8496x4784(LL)* *High Resolution mode.
1:1
4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 8000x8000(XL)* / 5664x5664(LL)* *High Resolution mode.
65:24
6000x2208(L)
2:1
6000x3000(L)
File size (pixels) when using APS-C/Super 35mm lenses
3:2
3984x2656(L) / 2880x1920(M) / 2064x1376(S)
4:3
3536x2656(L) / 2560x1920(M) / 1840x1376(S)
16:9
3984x2240(L) / 2880x1624(M) / 1920x1080(S)
1:1
2656x2656(L) / 1920x1920(M) / 1376x1376(S)
Image quality
RAW / RAW+Fine / RAW+Standard / Fine / Standard (High Resolution mode: Combined / RAW / RAW+Fine / Fine)
Color space
sRGB, AdobeRGB
MOTION PICTURE
Recording file format
MOV: H.264/MPEG-4 AVC, H.265/HEVC, Apple ProRes MP4: H.264/MPEG-4 AVC, H.265/HEVC
Audio format
MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**) MP4: AAC (2ch 48kHz/16-bit) *When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).
System frequency
59.94Hz / 50.00Hz / 24.00Hz
Image area of video
Full / APS-C / PIXEL/PIXEL
Proxy (*⁶)
ON / OFF Proxy Rec Quality: H / M / L Real Time LUT (Proxy): ON / OFF *When the following functions are being used, proxy recording is not available: [MP4], [Rec Quality] exceeding a resolution of C4K, [Rec Quality] with [4:3] or [3:2] aspect ratio, [Rec Quality] with a high frame rate video, [HDMI RAW Data Output] and [Streaming].
MOV / 59.94Hz / FULL (*HLG is selectable.) (*¹) (*²)
[6K] 5952x3968 (3:2)
29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[6K] 5952x3136 (17:9)
29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[5.9K] 5888x3312 (16:9)
29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[C4K] 4096x2160
29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[4K] 3840x2160
29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[FHD] 1920x1080
119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
MOV / 59.94Hz / APS-C / PIXEL/PIXEL (*HLG is selectable.) (*¹) (*²)
[C4K] 4096x2160
59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *External USB-SSD recording.
[4K] 3840x2160
59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *External USB-SSD recording.
[3.3K] 3328x2496 (4:3)
47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *External USB-SSD recording.
[FHD] 1920x1080
119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)* 119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *When Image Area of Video is set to APS-C.
MOV / 50.00Hz / FULL (*HLG is selectable.) (*¹) (*²)
[6K] 5952x3968 (3:2)
25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[6K] 5952x3136 (17:9)
25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[5.9K] 5888x3312 (16:9)
25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[C4K] 4096x2160
25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[4K] 3840x2160
25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[FHD] 1920x1080
100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
MOV / 50.00Hz / APS-C / PIXEL/PIXEL (*HLG is selectable.) (*¹) (*²)
[C4K] 4096x2160
50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *External USB-SSD recording.
[4K] 3840x2160
50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *External USB-SSD recording.
[3.3K] 3328x2496 (4:3)
50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *External USB-SSD recording.
[FHD] 1920x1080
100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)* 100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)* 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *When Image Area of Video is set to APS-C.
MOV / 24.00Hz / FULL (*HLG is selectable.) (*¹) (*²)
[6K] 5952x3968 (3:2)
24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[6K] 5952x3136 (17:9)
24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[5.9K] 5888x3312 (16:9)
24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[C4K] 4096x2160
24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[4K] 3840x2160
24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
[FHD] 1920x1080
48.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
MOV / 24.00Hz / APS-C / PIXEL/PIXEL (*HLG is selectable.) (*¹) (*²)
[C4K] 4096x2160
48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *External USB-SSD recording.
[4K] 3840x2160
48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *External USB-SSD recording.
[3.3K] 3328x2496 (4:3)
48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *External USB-SSD recording.
[FHD] 1920x1080
48.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) 24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
ProRes / 59.94Hz / FULL (*¹) (*²)
[5.8K] 5776x3056 (17:9)
29.97p, 1.9Gbps (ProRes 422 HQ) / 1.3Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* 23.98p, 1.6Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording.
[C4K] 4096x2160
29.97p, 972Mbps (ProRes 422 HQ) / 648Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* 23.98p, 778Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording.
[FHD] 1920x1080
59.94p, 454Mbps (ProRes 422 HQ) / 302Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM) 29.97p, 227Mbps (ProRes 422 HQ) / 151Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM) 23.98p, 181Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
ProRes / 59.94Hz / APS-C / PIXEL/PIXEL (*¹) (*²)
[C4K] 4096x2160
59.94p, 1.9Gbps (ProRes 422 HQ) / 1.3Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* 29.97p, 972Mbps (ProRes 422 HQ) / 648Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* 23.98p, 778Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording.
[3.3K] 3328x2496 (4:3)
29.97p, 913Mbps (ProRes 422 HQ) / 609Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* 23.98p, 730Mbps (ProRes 422 HQ) / 487Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording.
[FHD] 1920x1080
59.94p, 454Mbps (ProRes 422 HQ) / 302Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM) 29.97p, 227Mbps (ProRes 422 HQ) / 151Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM) 23.98p, 181Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
ProRes / 50.00Hz / FULL (*¹) (*²)
[5.8K] 5776x3056 (17:9)
25.00p, 1.6Gbps (ProRes 422 HQ) / 1.1Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording.
[C4K] 4096x2160
25.00p, 811Mbps (ProRes 422 HQ) / 541Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording.
[FHD] 1920x1080
50.00p, 378Mbps (ProRes 422 HQ) / 252Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM) 25.00p, 189Mbps (ProRes 422 HQ) / 126Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
ProRes / 50.00Hz / APS-C / PIXEL/PIXEL (*¹) (*²)
[C4K] 4096x2160
50.00p, 1.6Gbps (ProRes 422 HQ) / 1.1Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* 25.00p, 811Mbps (ProRes 422 HQ) / 541Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording.
[3.3K] 3328x2496 (4:3)
50.00p, 1.5Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* 25.00p, 761Mbps (ProRes 422 HQ) / 508Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording.
[FHD] 1920x1080
50.00p, 378Mbps (ProRes 422 HQ) / 252Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM) 25.00p, 189Mbps (ProRes 422 HQ) / 126Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
ProRes / 24.00Hz / FULL (*¹) (*²)
[5.8K] 5776x3056 (17:9)
24.00p, 1.6Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording.
[C4K] 4096x2160
24.00p, 779Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording.
[FHD] 1920x1080
24.00p, 182Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
ProRes / 24.00Hz / APS-C / PIXEL/PIXEL (*¹) (*²)
[C4K] 4096x2160
24.00p, 779Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording.
[3.3K] 3328x2496 (4:3)
24.00p, 731Mbps (ProRes 422 HQ) / 487Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)* *External USB-SSD recording.
[FHD] 1920x1080
24.00p, 182Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
MP4 / 59.94Hz / FULL (*¹)
[4K] 3840x2160
29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. 23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080
59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
MP4 / 59.94Hz / APS-C / PIXEL/PIXEL (*¹)
[4K] 3840x2160
59.94p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. 29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. 23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080
59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
MP4 / 50.00Hz / FULL (*¹)
[4K] 3840x2160
25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080
50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
MP4 / 50.00Hz / APS-C / PIXEL/PIXEL (*¹)
[4K] 3840x2160
50.00p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. 25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable. 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080
50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
MP4 / 24.00Hz / FULL
-
MP4 / 24.00Hz / APS-C / PIXEL/PIXEL
-
SLOW & QUICK
MOV / 59.94Hz / FULL (*¹)
[FHD] 1920x1080
59.94p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** 59.94p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** 29.97p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** 23.98p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *Angle of view narrows if you select a frame rate with a number of frames 151 or more. **External USB-SSD recording.
MOV / 59.94Hz / APS-C (*¹)
[C4K] 4096x2160
29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *External USB-SSD recording.
[4K] 3840x2160
29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *External USB-SSD recording.
[FHD] 1920x1080
59.94p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** 59.94p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 29.97p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** 29.97p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 23.98p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** 23.98p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *Angle of view narrows if you select a frame rate with a number of frames 151 or more. **External USB-SSD recording.
MOV / 50.00Hz / FULL (*¹)
[FHD] 1920x1080
50.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** 50.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** 25.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *Angle of view narrows if you select a frame rate with a number of frames 151 or more. **External USB-SSD recording.
MOV / 50.00Hz / APS-C (*¹)
[C4K] 4096x2160
25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *External USB-SSD recording.
[4K] 3840x2160
25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *External USB-SSD recording.
[FHD] 1920x1080
50.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** 50.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) 25.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** 25.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *Angle of view narrows if you select a frame rate with a number of frames 151 or more. **External USB-SSD recording.
MOV / 24.00Hz / FULL (*¹)
[FHD] 1920x1080
24.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** 24.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *Angle of view narrows if you select a frame rate with a number of frames 151 or more. **External USB-SSD recording.
MOV / 24.00Hz / APS-C (*¹)
[C4K] 4096x2160
24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *External USB-SSD recording.
[4K] 3840x2160
24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)* 24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *External USB-SSD recording.
[FHD] 1920x1080
24.00p (Maximum output of sensor is 180fps)*, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)** 24.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) *Angle of view narrows if you select a frame rate with a number of frames 151 or more. **External USB-SSD recording.
EXTERNAL USB-SSD RECORDING
Yes (ON / OFF)
HDMI RAW DATA OUTPUT
Compatible external devices
ATOMOS HDMI field monitor/recorder "Ninja V+" / "Ninja V" / "Shogun CONNECT" *Please refer to the ATOMOS website for the information on the corresponding firmware version of ATOMOS Ninja V+, ATOMOS Ninja V or ATOMOS Shogun CONNECT. *Software that supports ProRes RAW is required to edit RAW video recorded with ATOMOS Ninja V+ or ATOMOS Ninja V. Apply the LUT (Look up table) available on the following customer supports site to make the same color grading as V-Log/V-Gamut https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/ *All functions may not be available depending on the situation.Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR *Please refer to the Blackmagic Design website for the information on the corresponding firmware version of the Blackmagic Video Assist 12G HDR. *DaVinci Resolve or DaVinci Resolve Studio is required to play back and edit Blackmagic RAW data. DaVinci Resolve Studio is required to deliver projects using Blackmagic RAW data in resolutions over 3840x2160. *All functions may not be available depending on the situation.
Rec quality / 59.94Hz / FULL
[5.9K] 5888x3312 (16:9)
29.97p, 12-bit (LPCM) 23.98p, 12-bit (LPCM)
Rec quality / 59.94Hz / APS-C
[4.1K] 4128x2176 (17:9)
59.94p, 12-bit (LPCM) 29.97p, 12-bit (LPCM) 23.98p, 12-bit (LPCM)
[3.5K] 3536x2656 (4:3)
29.97p, 12-bit (LPCM) 23.98p, 12-bit (LPCM)
Rec quality / 50.00Hz / FULL
[5.9K] 5888x3312 (16:9)
25.00p, 12-bit (LPCM)
Rec quality / 50.00Hz / APS-C
[4.1K] 4128x2176 (17:9)
50.00p, 12-bit (LPCM) 25.00p, 12-bit (LPCM)
[3.5K] 3536x2656 (4:3)
50.00p, 12-bit (LPCM) 25.00p, 12-bit (LPCM)
Audio format
LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**) *When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).
STREAMING
Wi-Fi / Protocol
RTMP / RTMPS
Wi-Fi / 59.94Hz
[FHD] 1920x1080
59.94p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set. 29.97p, 6Mbps / 3Mbps (H.264)
[HD] 1280x720
59.94p, 6Mbps (H.264) 29.97p, 4Mbps (H.264)
Wi-Fi / 50.00Hz
[FHD] 1920x1080
50.00p, 16Mbps* / 8Mbps (H.264) *Not selectable when RTMPS is set. 25.00p, 6Mbps / 3Mbps (H.264)
[HD] 1280x720
50.00p, 6Mbps (H.264) 25.00p, 4Mbps (H.264)
USB Tethering / Protocol
RTMP / RTMPS
USB Tethering / 59.94Hz
[4K] 3840x2160
29.97p, 12.5Mbps (H.264)
[FHD] 1920x1080
59.94p, 16Mbps / 8Mbps (H.264) 29.97p, 6Mbps / 3Mbps (H.264)
[HD] 1280x720
59.94p, 6Mbps (H.264) 29.97p, 4Mbps (H.264)
USB Tethering / 50.00Hz
[4K] 3840x2160
25.00, 12.5Mbps (H.264)
[FHD] 1920x1080
50.00p, 16Mbps / 8Mbps (H.264) 25.00p, 6Mbps / 3Mbps (H.264)
[HD] 1280x720
50.00p, 6Mbps (H.264) 25.00p, 4Mbps (H.264)
Wired LAN / Protocol
RTP / RTSP
Wired LAN / 59.94Hz
[4K] 3840x2160
59.94p, 50Mbps / 25Mbps (H.265)* 59.94p, 50Mbps / 25Mbps (H.264)* 29.97p, 25Mbps / 12.5Mbps (H.265) 29.97p, 25Mbps / 12.5Mbps (H.264) *When Image Area of Video is set to APS-C or PIXEL/PIXEL.
[FHD] 1920x1080
59.94p, 20Mbps / 16Mbps (H.265) 59.94p, 16Mbps / 8Mbps (H.264) 29.97p, 12Mbps / 6Mbps (H.265) 29.97p, 6Mbps / 3Mbps (H.264)
[HD] 1280x720
59.94p, 6Mbps (H.264) 29.97p, 4Mbps (H.264)
Wired LAN / 50.00Hz
[4K] 3840x2160
50.00p, 50Mbps / 25Mbps (H.265)* 50.00p, 50Mbps / 25Mbps (H.264)* 25.00p, 25Mbps / 12.5Mbps (H.265) 25.00p, 25Mbps / 12.5Mbps (H.264) *When Image Area of Video is set to APS-C or PIXEL/PIXEL.
[FHD] 1920x1080
50.00p, 20Mbps / 16Mbps (H.265) 50.00p, 16Mbps / 8Mbps (H.264) 25.00p, 12Mbps / 6Mbps (H.265) 25.00p, 6Mbps / 3Mbps (H.264)
[HD] 1280x720
50.00p, 6Mbps (H.264) 25.00p, 4Mbps (H.264)
VIEWFINDER
Type
OLED Live View Finder
Pixels
Approx. 3.68 million dots
Field of view / Magnification
Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2
Eye point / Diopter adjustment
Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +2.0 (dpt)
Eye sensor
Yes
Display speed
120fps / 60fps
REAR MONITOR
Type
TFT LCD monitor with static touch control
Monitor size
Free-angle, 3.0-inch (7.6cm), 3:2 aspect
Pixels
Approx. 1.84 million dots
Field of view
Approx. 100%
STATUS LCD
-
FOCUS (*³)
Type
Phase Detection AF system / Contrast AF system
DFD technology
Yes
Focus mode
AFS (Single) / AFC (Continuous) / MF
AF mode
Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint *Automatic Detection can be turned ON to switch between Human / Animal / Car (*⁶) / Motorcycle (*⁶). Except when Pinpoint is set.
AF detective range
EV -6 - 18 (F1.4, ISO100 equivalent, AFS)
AF custom setting
AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist light
Yes
AF lock
Set the Fn button in custom menu to AF lock
Focus ring control
Nonlinear / Linear (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum)
Others
AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, 1-Area AF Moving Speed, AF Micro Adjustment, Continuous AF (during motion picture recording), Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, AF-Point Scope (*⁵), Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume
EXPOSURE CONTROL
Light metering system
1,728-zone multi-pattern sensing system
Light metering mode
Multiple / Center Weighted / Spot / Highlight Weighted
Metering range
EV0-18 (F2.0 lens, ISO100 equivalent)
Mode dial
Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Slow&Quick / Custom 1, 2, 3 / Intelligent Auto *The same exposure operations as P/A/S/M mode is available.
Exposure compensation
1/3 EV step ±5EV (±3EV for motion picture)
ISO sensitivity (Standard output sensitivity)
[Normal] Auto / 50* / 100-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO[V-Log] Auto / 320* / 640-51200 (1/3 or 1 EV step) *Extended ISO[HLG] Auto / 400-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO
Dual Native ISO
[Normal] Native ISO: 100, 640 Auto: Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO Low: Auto / 50* / 100-800 *Extended ISO High: Auto / 320* / 640-51200 / 102400* / 204800* *Extended ISO[V-Log] Native ISO: 640, 4000 Auto: Auto / 320* / 640-51200 *Extended ISO Low: Auto / 320* / 640-5000 *Extended ISO High: Auto / 2000* / 4000-51200 *Extended ISO[HLG] Native ISO: 400, 2500 Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO Low: Auto / 400-3200 High: Auto / 2500-51200 / 102400* / 204800* *Extended ISO[Cinelike D2 / Cinelike V2] Native ISO: 200, 1250 Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO Low: Auto /100* / 200-1600 *Extended ISO High: Auto / 640* / 1250-51200 / 102400* / 204800* *Extended ISO
AE lock
Set the Fn button in custom menu to AE lock
IMAGE STABILIZATION SYSTEM
B.I.S. (5-axis / 5-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.] Dual I.S. 2 (6.5-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.]
WHITE BALANCE
White balance
AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
White balance adjustment
Blue/Amber bias, Magenta/Green bias
Color temperature setting
2500-10000K in 100K
SHUTTER
Type
Focal-plane shutter
Shutter speed
Still image: Bulb (Max. 30 minutes), 1/8,000 - 60 Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60 Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60 Motion picture: 1/16,000 - 1/25 Creative Video M mode / MF mode: 1/16,000 - 1/2
Self timer
10sec, 3 images / 2sec / 10sec / Custom Time
Remote control
Remote control by DMW-RS2 (sold separately)
Silent mode / Shutter type
Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)
BRACKET
AE bracket
3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture bracket
3, 5 or all positions
Focus bracket
1 to 999 images, focus steps can be set in 10 levels
White balance bracket
3 images in blue/amber axis or in magenta/green axis, color temperature setting
BURST SHOOTING
Burst speed
Mechanical shutter / Electronic front curtain shutter
H: 9 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View) M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View) L: 2 frames/sec (AFS/AFC/MF) (with Live View)
Electronic shutter
SH30: 30 frames/sec (AFS/AFC/MF) SH30 PRE: 30 frames/sec (AFS/AFC/MF) (*⁶) H: 9 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View) M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View) L: 2 frames/sec (AFS/AFC/MF) (with Live View)
Number of recordable images
H/M/L* RAW+JPEG: More than 200 images RAW: More than 200 images JPEG: More than 300 images *Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic. *When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)".SH RAW / RAW+JPEG / JPEG: 200 images
FLASH
Flash type
TTL External Flash (sold separately)
Synchronization speed
Less than 1/250 second *The guide number decreases at 1/250 second. Only when set to M mode or S mode.
Flash mode
Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
Flash synchronization
1st Curtain Sync, 2nd Curtain Sync.
Flash output adjustment
1/3EV step ±3EV
Wireless control
Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
EXTRA TELE CONVERSION
2.0x (EX S) (When using full-frame lenses), 1.9x (EX S) (When using APS-C / Super 35mm lenses), 1.4x (EX M) *Only for still image recording.
COLOR SETTINGS
Photo Style
Photo Style
Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log / REAL TIME LUT / Like2100 (HLG) / Like2100 (HLG) Full Range* / My Photo Style 1-4 (5-10)* *Set to ON from Show/Hide Photo Style to select.
Picture adjustment
Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB / LUT *Adjustable settings vary depending on the Photo Style mode.
Filter
Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass
LUT Library
Vlog_709 / Set 1-10 *REAL TIME LUT in Photo Style, Apply LUT in Fn button, Apply LUT in RAW Processing, LUT View Assist in V-Log View Assist, LUT can be applied from these settings.
MOTION PICTURE FUNCTION
Time lapse shot
Yes
Stop motion animation
Yes
Live cropping
Yes (Supports cropping from 5.9K (FULL) 30p/25p/24p video to 4K/FHD sizes)
SS/Gain operation
Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
Luminance level
8-bit: 0-255 / 16-235 / 16-255 10-bit: 0-1023 / 64-940 / 64-1023
Synchro scan
Yes
Master pedestal level
31 steps
Color bars / 1kHz test tone
Yes (SMPTE / EBU / ARIB) / Yes
LUT view assist
Supported file types: .vlt, .cube Monitor / HDMI
HLG view assist
Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)
Anamorphic desqueeze display
2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
Wave form monitor / Vectorscope
Selectable
Knee control
Yes (in Like709 mode)
Red REC frame indicator
ON / OFF
VERTICAL POSITION INFORMATION
Still image / Motion picture (ON/OFF)
LEVEL GAUGE
Yes
FUNCTION BUTTON
REC
Exposure Comp. / Dual Native ISO / Sensitivity / White Balance / Photo Style / Apply LUT / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Color Shading Compensation / Filter Effect / One Push AE / Touch AE / AWB Lock / Exposure Mode / Synchro Scan / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode Setting / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Rec. File Format / Rec Quality / Rec Quality (My List) / Slow & Quick Setting / Time Code Display / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Mic Input / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Creative Video) / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control / AF Micro Adjustment / Lens Information / Destination Card Slot / Wi-Fi / Fan Mode / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / AF-Point Scope (*⁵) / Proxy Recording (*⁶) / Restore to Default
PLAY
Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Video Record (Creative Video) / Night Mode / Card Slot Change / Sound Monitoring Channel(Play) / Wi-Fi / Fan Mode / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Send Images to Frame.io (*⁶) / Restore to Default
INTERFACE
USB
USB Type-C (SuperSpeed USB 10Gbps (USB 3.2 Gen2))
HDMI (*⁴)
HDMI
HDMI TypeA Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.)
Monitor-through
4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].) 4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
Playback
59.94Hz: C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p* 50.00Hz: C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p* 24.00Hz: C4K/24p / 4K/24p / 1080p *Only for playback.
Remote input
φ2.5mm
Audio
Build-in microphone
Stereo Wind Noise Canceller: OFF / Standard / High
External microphone / External audio device input
φ3.5mm for external microphone / external audio device MIC (Plug-in Power) / MIC / LINE Wind Cut: OFF / Low / Standard / High *When attaching 3.5mm microphone (sold separately). Special Mic: Stereo / Shotgun *When attaching DMW-MS2 (sold separately).
XLR microphone
Yes with DMW-XLR1 (sold separately)
4ch mic input
Yes with DMW-XLR1 (sold separately)
Speaker
Monaural
Headphone output
φ3.5mm
SD card slot
Slot 1, Slot 2 SD Memory Card / SDHC Memory Card* / SDXC Memory Card* *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
TC IN/OUT
Count up
Rec Run / Free Run
Time code mode
Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)
HDMI time code output
ON / OFF
FAN
Auto1 / Auto2 / Fast / Normal / Slow* / OFF** *Not selectable when the resolution is higher than C4K, or the frame rate is higher than 60p. **OFF can be set when in iA/P/A/S/M mode.
WIRELESS
Wi-Fi
2.4GHz bands (STA/AP) (IEEE802.11b/g/n) 5GHz bands (STA) (IEEE 802.11a/n/ac) Security: WPA/WPA2/WPA3
Bluetooth
Bluetooth® v5.0 (Bluetooth Low Energy (BLE))
DUST AND SPLASH RESISTANT*
Yes. *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.
POWER
Battery
Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled) USB power supply, USB power charging, USB power delivery
Battery life (CIPA standard)
When using SD memory card
Approx. 370 images, 1,250 images (Power Save LVF mode*) with S-R2060 Approx. 370 images, 1,200 images (Power Save LVF mode*) with S-S50 *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
When using external USB-SSD
Approx. 300 images with S-R2060 Approx. 300 images with S-S50
Continuous recordable time (Motion picture) (*¹)
MP4 [4K/60p]: Approx. 90 min (APS-C), MP4 [FHD/60p]: Approx. 130 min (FULL) *When using S-R2060 / S-S50. When the battery is fully charged.
Actual recordable time (Motion picture) (*¹)
MP4 [4K/60p]: Approx. 45 min (APS-C), MP4 [FHD/60p]: Approx. 65 min (FULL) *When using S-R2060 / S-S50. When the battery is fully charged.
Battery grip
DMW-BGS5 (sold separately)
DIMENSIONS / WEIGHT
Dimensions (W x H x D)
Approx. 134.3 x 102.3 x 90.1 mm / 5.29 x 4.03 x 3.55 inch (Body only, excluding protrusions) Approx. 134.3 x 102.3 x 157.0 mm / 5.29 x 4.03 x 6.19 inch (with S-R2060, excluding protrusions) Approx. 134.3 x 102.3 x 151.8 mm / 5.29 x 4.03 x 5.98 inch (with S-S50, excluding protrusions)
Weight
Approx. 740g / 1.64 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x 1) (excluding body cap) Approx. 657g / 1.45 lb (Body, Hot Shoe Cover) (excluding body cap)
OPERATING ENVIRONMENT
Operating temperature
0℃ to 40℃ (32℉ to 104℉)
Operating humidity
10%RH to 80％RH
STANDARD ACCESSORIES
Software
Recording
LUMIX Tether ･This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software. http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)LUMIX Sync ･This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software. https://panasonic.jp/support/global/cs/dsc/ (For Android™ / iOS)
Playback / Editing
･The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory\'s website using computer connected to the Internet. http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
Standard accessories
DC-S5M2X Kit Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, AC Adaptor, USB Connection Cable (A-C)DC-S5M2XK Kit / DC-S5M2XC Kit Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, AC Adaptor, USB Connection Cable (A-C), Lens Cap, Lens Hood, Lens Rear CapDC-S5M2XW Kit Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, AC Adaptor, USB Connection Cable (A-C), Lens Cap x 2, Lens Hood x 2, Lens Rear Cap x 2･The Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.
Note
(*1) About motion picture recording - The cards that can be used for recording vary depending on the motion pictures bit rate and format type. Motion pictures with 72Mbps or less: External USB-SSD, SD memory card with SD Speed Class with Class 10 or Video Speed Class 10 or higher Motion pictures with 200Mbps or less: External USB-SSD, SD memory card with UHS-I / UHS-II UHS Speed Class 3 (U3) or Video Speed Class 30 or higher Motion pictures with 400Mbps or less: External USB-SSD, SD memory card with Video Speed Class 60 or higher Motion pictures with 600Mbps or less: External USB-SSD, SD memory card with Video Speed Class 90 Motion pictures with 800Mbps or more or ProRes: External USB-SSD - A new file will be created to continue recording if the continuous recording time exceeds the following conditions. Motion pictures with less than 72Mbps: 30 minutes Motion pictures with 72Mbps or more: 3 hours 4 minutes - A new file will be created to continue recording if the file size exceeds the following conditions. [MP4] in [FHD]: 4GB [MP4] in [4K]: 96GB [MOV] in 600Mbps or less: 192GB [MOV] in 800Mbps: 640GB [ProRes] in [5.8K]: 640GB - If the resolution is higher than C4K, the frame rate is higher than 60p or set to ProRes, the camera may stop the recording to protect itself. Wait until the camera cools down. - Recording stops when the continuous recording time exceeds 30 minutes with the following settings. [MOV] in [6K/29.97p] [6K/25.00p] [5.9K/29.97p] [5.9K/25.00p] when Thermal Management mode is set to Standard. [ProRes] in [5.8K/29.97p] [5.8K/25.00p] [C4K/59.94p] [C4K/50.00p] when Thermal Management mode is set to Standard. (*2) High-res audio is selectable only when attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). (*3) About AF - Automatic Detection is not available for High Frame Rate video shooting above 60p (100p or 120p). - Tracking and Automatic Detection are not available when using HDMI cable or USB connection cable for High Frame Rate video shooting (100p or 120p) above 60p. (*4) To output motion pictures with 4K or higher, use a Premium High Speed HDMI cable (Type A - Type A plug). (*5) Firmware must be updated to version 1.3. (*6) Firmware must be updated to version 2.0.

Manuale

Întrebări și răspunsuri

Puneți o întrebare
Puneți o întrebare
Întrebarea dvs. va fi vizibilă public pe pagina acestui produs. Va fi răspunsă de un reprezentant al magazinului sau de alți clienți. Dacă doriți să puneți o întrebare care vă privește doar pe dvs., contactați direct Serviciul nostru pentru clienți.

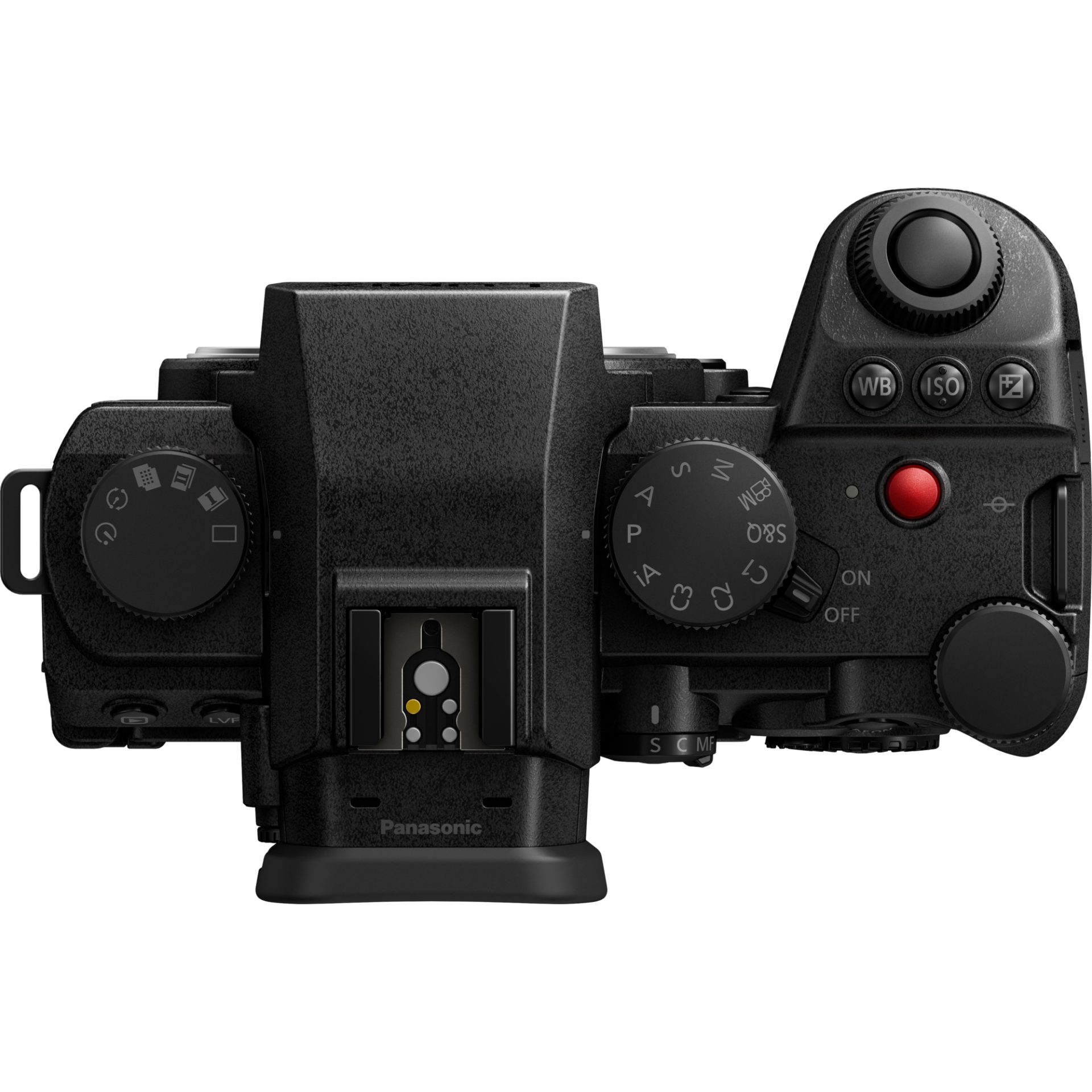

Panasonic DC-S5M2XM Lumix Full-Frame cameră mirrorless DC-S5M2X + obiectiv S-R24105 24-105mm, F4, MACRO O.I.S. (CMOS 24.2MP, Active I.S.), negru Panasonic DC-S5M2XM Lumix Full-Frame cameră mirrorless DC-S5M2X + obiectiv S-R24105 24-105mm, F4, MACRO O.I.S. (CMOS 24.2MP, Active I.S.), negru
Your question
200 characters left
* Question is required
Nume
* Numele este necesar
* Vă rugăm să bifați caseta pentru a continua
Acest site este protejat de reCAPTCHA și se aplică Politica de Confidențialitate și Termenii de Serviciu ai Google.
Nu există încă întrebări

Nu găsești răspunsul? Întreabă acum!

Accesorii și piese de schimb

Aceste produse sunt aplicabile cu DC-S5M2XME

Siguranța produsului

Producător
Panasonic Corporation
Panasonic Tokyo Shiodome Bld. 1-5-1 Higashi Shimbashi, Minato-ku1
Tokyo 105-8301
Japan
E-mail de contact pentru întrebări generale privind siguranța produselor: ask.panasonic.safety@eu.panasonic.com

Reprezentant autorizat în UE:
Panasonic Marketing Europe GmbH
Panasonic Testing Centre
Winsbergring 15
22525 Hamburg
Germany
E-mail de contact pentru întrebări generale privind siguranța produselor: ask.panasonic.safety@eu.panasonic.com
